How to Test a Car Battery with a Multimeter

Overview:

Testing your car battery with a multimeter is an essential part of maintaining a healthy electrical system in your vehicle. By following a few simple steps, you can accurately assess your battery’s state of charge and determine if it’s time for a replacement. This guide will walk you through the process of using a multimeter to test your car battery, including how to remove surface charge, what to look for in your readings, and alternative methods to check battery health.

What Does a Car Battery Do?

Your vehicle’s battery is the heart of its electrical system. It provides the initial spark needed to start the engine and powers electrical accessories when the engine isn’t running. A fully functioning battery ensures smooth engine starts and proper operation of the vehicle’s electronics.

How Do Car Batteries Work?

A typical car battery consists of six cells, each generating 2 volts, combining to provide a total of 12 volts. Each cell contains a lead dioxide plate and a lead plate submerged in sulfuric acid. A chemical reaction between these components generates the electrical power used by your car’s starter motor, which cranks the engine. Once the engine is running, the alternator takes over, recharging the battery.

What Is Amperage and CCA?

Amperage refers to the electrical current a battery can provide. Cold Cranking Amps (CCA) measures how many amps a battery can supply at 0°F for 30 seconds while maintaining a voltage of at least 7.2 volts. Higher CCA ratings generally indicate greater starting power, especially in colder weather.

Testing Your Car Battery with a Multimeter

To check the state of charge of your car’s battery, a multimeter is a quick and effective tool. Here’s how to use one:

1. Set the Multimeter
   • Set your multimeter to measure DC voltage.
   • Adjust the dial to the 20V range (or auto-range if using an auto-ranging multimeter).
2. Prepare the Multimeter Leads
   • Connect the red (positive) lead to the red port and the black (negative) lead to the black port on the multimeter.
3. Connect the Probes to the Battery Terminals
   • Place the black probe on the negative terminal (marked “-“) and the red probe on the positive terminal (marked “+”).
4. Take the Reading

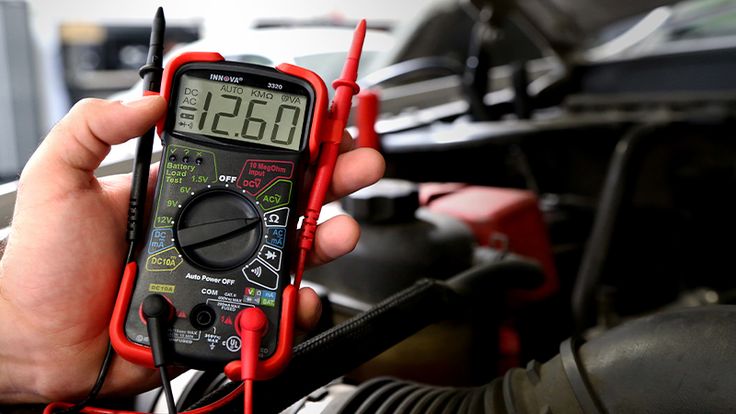

   • A fully charged battery should show a reading of 12.6 volts.
   • A reading under 12.2 volts indicates a partially charged or weak battery.
   • If the voltage is below 11.9 volts, the battery is considered discharged.

Removing Surface Charge for Accurate Testing

Before you test your car battery, you should remove any surface charge to ensure an accurate reading. Surface charge occurs when the battery has recently been driven or charged, and it may cause a falsely high voltage reading. Here’s how to remove it:

1. Turn on your headlights for 1 minute.
2. Turn off the headlights and wait for 2 minutes.
3. Ensure all electrical accessories (lights, radio, A/C) are turned off, and the engine is off.

Once the surface charge is removed, you’re ready to proceed with your multimeter test.

Interpreting the Results:

• 12.6 volts: A fully charged, healthy battery.
• 12.2-12.4 volts: Battery is moderately charged (around 50%).
• 11.9 volts or lower: Battery is undercharged or discharged.

If the voltage drops below 9.6 volts while starting the engine, it’s a clear sign that the battery is weak.

How to Test a Car Battery Without a Multimeter:

If you don’t have a multimeter, you can still perform a basic test. Have a friend help you by performing the following:

1. Turn on your headlights with the engine off.
2. Ask your friend to start the car while you observe the headlights.
3. If the headlights dim significantly when the engine starts, it suggests the battery is weak or in need of charging.

Other Methods of Testing Your Car Battery

1. Hydrometer Test: If your battery has removable caps, you can use a hydrometer to measure the specific gravity of the electrolyte in each cell. A reading of 1.260 is optimal.
2. Conductance Testing: Professionals often use conductance testers to assess a battery’s cold cranking amps (CCA). This test compares the actual CCA with the battery’s rated CCA to determine its health.
3. Load Testing: A professional can perform a load test by applying a known load to the battery and monitoring the voltage. A healthy battery should maintain a voltage above 9.6 volts under load.

Importance of Clean Battery Terminals

If your battery terminals are corroded or dirty, it can lead to poor contact and inaccurate voltage readings. Clean terminals are essential for maintaining proper battery function. Corrosion or build-up can reduce voltage and prevent your vehicle from starting, even with a good battery.

Common Causes of Battery Drain:

Battery drainage can occur for several reasons, including:

• Parasitic Drains: Electrical components like lights or electronics left on when the vehicle is off.
• Faulty Alternator: If the alternator isn’t properly charging the battery, it may drain faster than usual.
• Excessive Short Circuits: A short circuit in the electrical system can cause a constant drain.

If you notice unusual battery drain, it’s best to have a professional mechanic diagnose and fix the issue.

Symptoms of a Weak or Dead Battery:

1. Slow Cranking: The engine turns over slowly or not at all when attempting to start.
2. Malfunctioning Accessories: Power windows, seat heaters, or defrosters may fail to work properly.
3. Issues with Remote Keyless Entry: Difficulty opening doors or the trunk, especially if using a remote keyless entry system, could signal a weak battery.

Conclusion:

Knowing how to test your car battery with a multimeter is a valuable skill for any car owner. Regular checks can help prevent unexpected breakdowns and extend the life of your battery. If your battery is not holding a charge or consistently shows low voltage readings, it’s time to consider getting a replacement.

For any complex issues, it’s always a good idea to consult with a professional to ensure your battery and charging system are functioning properly.
